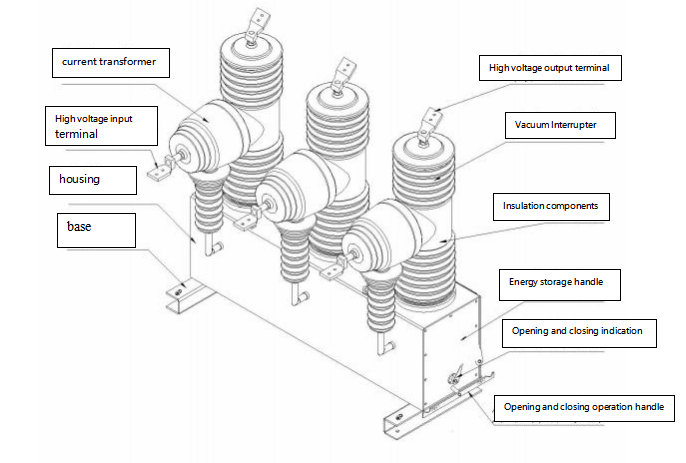

ZW32-24 Outdoor High Voltage Vacuum Circuit Breaker

Overview:

ZW32-24 outdoor vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor Power distribution equipment with a rated voltage of 24kV and three-phase AC 50Hz. It is mainly used to break and close the load current, overload current and short-circuit current in the power system. It is suitable for protection and control in substations and industrial and mining enterprises' power distribution systems, as well as places where rural power grids are frequently operated.

This circuit breaker has the characteristics of small size, light weight, anti-condensation, and maintenance-free, and can adapt to severe climatic conditions and dirty environments.

Technical Parameters

Installation Dimensions

Usage conditions

 Surrounding air temperature: -30 ℃~+60 ℃;

Altitude: not exceeding 3000 meters;

The wind speed does not exceed 34m/s;

Vibration or ground motion from outside the switchgear and control equipment can be ignored;

Pollution level: Level IV;

Storage temperature: -40 ℃~+85 ℃.

Procurement and Customization Advice

When inquiring or placing an order, it's helpful to specify the following:

- Rated Voltage

- Rated Current

- Rated Short-Circuit Breaking Current

- Any other special requirements, such as the type of operating mechanism (manual or electric) or the need for Current Transformers.
