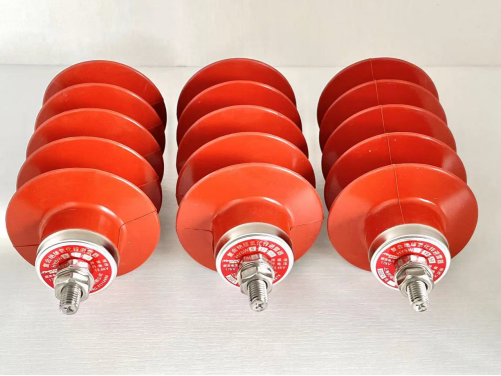

10KV Power Station, Capacitor Type Lightning Arrester

Key Features & Benefits

- Dual-Function Design: Integrates both Surge protection and capacitive filtering capabilities in a single device, providing comprehensive overvoltage protection while helping to mitigate high-frequency transients.

- Rapid Response Time: Extremely fast operation response (nanosecond-level) ensures immediate conduction when overvoltage occurs, effectively limiting voltage spikes to safe levels.

- High Energy Absorption Capacity: Robust design capable of absorbing and dissipating substantial surge energies from direct and indirect lightning strikes, as well as switching operations.

- Excellent Protective Characteristics: Low residual voltage ratio ensures that protected equipment experiences only minimal overvoltage during surge events, significantly extending equipment lifespan.

- Stable Performance: Maintains consistent protection characteristics throughout its service life with minimal performance degradation under normal operating conditions.

- Multiple Mounting Options: Suitable for various installation configurations including pole mounting, platform installation, and structure mounting in power station environments.

 Operating Principles

The capacitor-type arrester operates on the principle of nonlinear resistance combined with capacitive characteristics:

- Under normal operating conditions, the arrester presents high impedance to the system voltage

- When transient overvoltages exceed the arrester's triggering level, its impedance dramatically decreases, providing a low-impedance path to ground for surge currents

- The capacitive component helps in filtering high-frequency noise and provides additional stability to the protection system

- After the surge passes, the arrester automatically returns to its high-impedance state, ready for the next event

 Installation & Maintenance

- Installation Position: Should be installed as close as possible to the equipment being protected, typically at the incoming line Terminals

- Connection: Connect between phase and ground using appropriate conductors and Connectors

- Grounding: Requires a low-impedance ground connection for optimal performance

- Clearance: Maintain proper clearance distances according to local electrical codes

- Regular Inspection: Visual inspection for physical damage, contamination, or tracking marks

- Periodic Testing: Recommended periodic testing of leakage current and functional status

 Why Choose Our 10kV Capacitor Type Lightning Arrester?

As a professional manufacturer of electrical protection devices, we offer high-quality capacitor type lightning arresters that comply with international standards. Our products undergo rigorous testing to ensure reliable performance in the most demanding power station environments.

We provide technical support and customization options to meet your specific application requirements, including special mounting configurations, specific voltage ratings, and environmental adaptations.

Quality assurance

The company establishes, implements, and maintains a quality management system in accordance with the ISO9001 quality assurance model,

To ensure the high quality of products and services.

Resistance inspection items:

a. Square wave screening;

b. Residual voltage measurement under nominal discharge current;

c. Measurement of 1mA DC reference voltage;

d. Visual inspection;

Lightning arrester outlet inspection:

a. Sealing test;

B DC reference voltage U1mA test;

C. Direct leakage current test at 0.75U1ma;

d. Power frequency reference voltage test

e. Continuous current test

f. Partial discharge test;

Sampling test:

a. Accelerated aging test;

b. 4/10 μ S high current withstand test;

c. 2mS square wave capacity test;
