Circuit Breaker Adaptive Design for Renewable Energy Integration Scenarios

2025-10-05 16:46:52

A large-scale photovoltaic power plant once experienced a sudden drop in output due to unexpected cloud cover. The site's circuit breaker, whose traditional protection settings could not adapt to such rapid fluctuations, misoperated, causing a partial grid disconnection. Post-analysis revealed that the conventional inverse-time overcurrent protection logic was fundamentally incompatible with the random and intermittent nature of renewable energy generation. This typical incident highlights the deep transformation Circuit breakers must undergo to adapt to renewable energy scenarios.

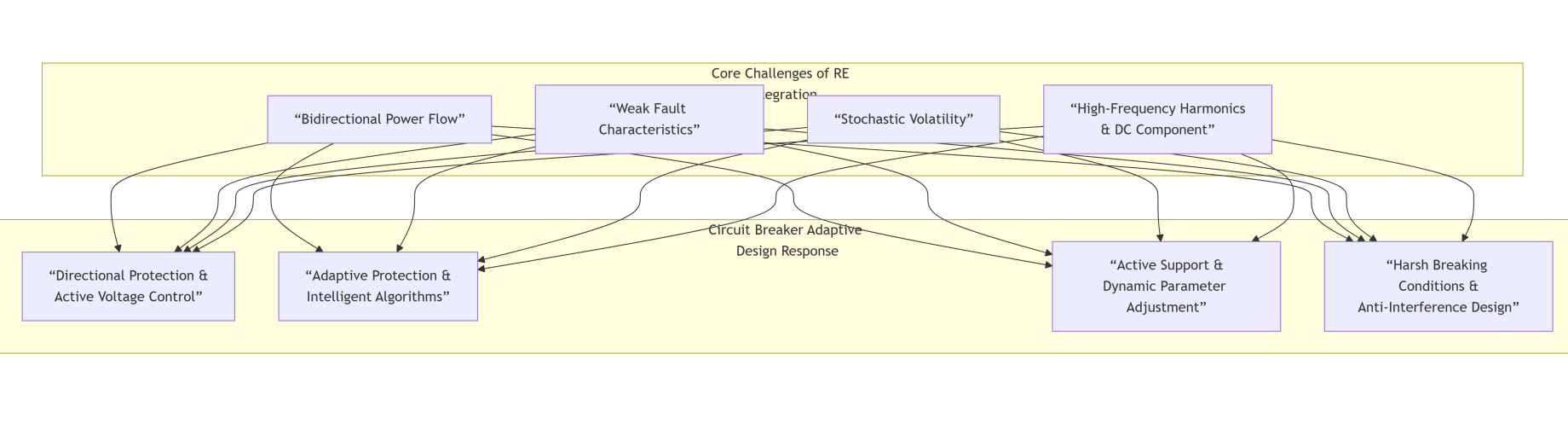

 I. Four Core Challenges of Renewable Integration & Corresponding Design Responses

Traditional circuit breaker design was based on relatively stable power sources and unidirectional power flow. Renewable integration has completely Disrupting this environment. The correspondence between the specific challenges and the design responses is as follows:

 Challenge 1: TheDisrupting of Bidirectional Power Flow

   Scenario: In distribution networks, prosumers (e.g., with rooftop PV) are both electricity consumers and generators. Current can flow from the grid to the user (during consumption) or from the user to the grid (during generation).

   Threat to Breaker: Traditional overcurrent and earth leakage protection is designed for unidirectional flow. Reverse power flow can cause protection failure to operate (non-operation) or misoperation, endangering equipment and personnel.

   Adaptive Design:

       Standard Directional Protection Capability: Employ directional discrimination elements that operate only when current exceeding the set value flows from the specified direction (e.g., grid side to load side). This is the foundation for adapting to bidirectional flow.

       Integrated Reverse Power Protection: Decisively trips when continuous reverse power flow exceeding a set threshold is detected, preventing islanding operation and reverse impact on the grid.

 Challenge 2: Weak-Feed Fault Characteristics

 Scenario: The output current of PV inverters and wind turbine converters is limited by their power electronic devices, typically to a maximum of 1.2-1.5 times the rated current. When a short-circuit occurs on the grid side, the fault current contributed by renewable sources is very small ("weak feed").

  Threat to Breaker: Traditional current protection relies on sufficiently large short-circuit current for activation. The weak-feed characteristic makes fault current difficult to distinguish from normal load current, causing upstream breakers to fail to detect the fault or delay operation, expanding the outage.

 Adaptive Design:

       Voltage Protection Priority, Supplemented by Current Protection: In addition to detecting current, real-time monitoring of voltage sag is crucial. Low-voltage initiation becomes a key criterion.

  Integrated Adaptive Protection Strategies: Breakers need fault type identification capability and automatically switch protection algorithms. For example, comprehensive criteria based on harmonic change rate, voltage sequence components etc., enable fast and accurate fault isolation even under weak-feed conditions.

 Challenge 3: Stochasticity and Volatility

Scenario: Passing clouds cause instantaneous, steep drops in PV output power; changing wind speeds cause fluctuations in wind turbine output.

 Threat to Breaker: Severe power fluctuations cause voltage flicker and frequency deviation, challenging breaker stability and accuracy of protection settings.

Adaptive Design:

       Wide-Range Adaptive Setting Values: Protection settings are no longer fixed but can be dynamically adjusted based on forecast data from the Energy Management System (EMS) or real-time measurements of system frequency and voltage level.

  Active Support Functions: Advanced breakers (e.g., those associated with grid-forming inverters) need to support virtual inertia and fast reactive power regulation, actively injecting or absorbing reactive power during system disturbances to help stabilize the grid.

 Challenge 4: Non-Ideal Characteristics of Power Electronics

 Scenario: Inverter switching generates significant high-frequency harmonics; during fault initiation, PV inverters can contribute a rapidly decaying DC component.

Threat to Breaker: High-frequency harmonics can interfere with the sampling accuracy of electronic transformers, leading to incorrect protection measurements. The DC component can prevent current from crossing zero, increasing the arcing time and breaking difficulty for vacuum or SF6 circuit breakers.

Adaptive Design:

       Anti-Harmonic Interference Sampling & Algorithms: Use sensors with higher sampling rates and embed digital filters in the protection algorithm to effectively filter out specific frequency bands of harmonics and extract the fundamental component.

       Forced Current Zero Interruption Technology: For the DC component issue, breakers may need active forced current zero capability, using power electronic switches to generate a reverse current, forcing the total current to zero quickly for reliable arc extinction.

 II. Summary of Core Features of Renewable Energy-Specialized Circuit Breakers

Synthesizing the challenges and responses, a modern circuit breaker adapted for renewable energy scenarios should possess the following features:

 III. Future Outlook: The Circuit Breaker as a Grid-Intelligent Node

The future circuit breaker will no longer be an isolated protective device. It will be an intelligent primary equipment integrating sensing, measurement, communication, control, and protection.

   Edge Computing: Perform preliminary fault type identification and isolation decisions locally at the breaker, reducing response time from ~100ms level to ~10ms level.

   Grid-Forming Support: Act as a stabilizing cornerstone for building new power systems with high penetration of renewables, actively participating in grid frequency and voltage regulation.

Conclusion:

In the grand narrative of renewable energy integration, the adaptive design of circuit breakers represents a comprehensive upgrade from "muscle" to "nerves." The core of this evolution is the transition from an electromagnetic-mechanical device to a system-level solution based on digital chips and intelligent algorithms. For breaker manufacturers and grid users, embracing this change is not only essential to meet current engineering needs but also key to seizing the technological high ground of the future.
