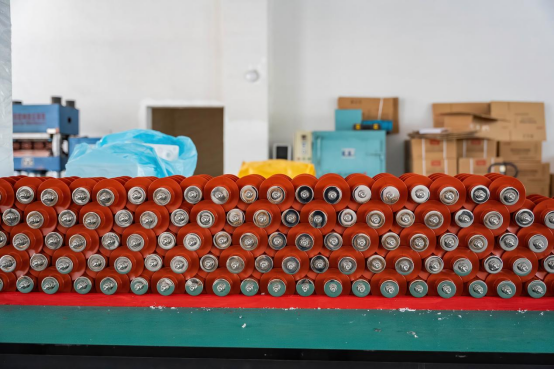

10KV Distribution Type Zinc Oxide Lightning Arrester

Featuring a high-performance Zinc Oxide (ZnO) core and a durable silicone rubber polymer housing, this arrester reduces lightning-induced tripping rates by 70%+ while clamping overvoltages in microseconds. Designed for easy pole-mounted or substation installation, it withstands harsh environments like coastal salt spray, industrial pollution, and extreme temperatures (-40°C to +40°C). Compliant with GB 11032-2000 (IEC 60099-4) and JB/T 10497-2005, this maintenance-free solution ensures reliable protection for: Distribution Transformers: Prevent insulation breakdown during lightning events. Rural/Urban Overhead Lines: Minimize outages in high-lightning regions. Industrial Feeders: Safeguard sensitive equipment from transient surges.

Product Features

1. Small size, light weight, collision resistance, and flexible installation;

2. Special structure, integral molding, no air gap, good sealing performance, moisture-proof and explosion-proof;

3. Long creepage distance, good hydrophobicity, strong stain resistance, stable performance, and reduced operation and maintenance;

4. The unique formula of Zinc oxide Resistors has low leakage current, slow aging rate, and long service life.

5. The actual DC reference voltage, square wave current capacity, and high current withstand capability are all higher than the national standards.

Quality assurance

The company establishes, implements, and maintains a quality management system in accordance with the ISO9001 quality assurance model,

To ensure the high quality of products and services.

Resistance inspection items:

a. Square wave screening;

b. Residual voltage measurement under nominal discharge current;

c. Measurement of 1mA DC reference voltage;

d. Visual inspection;

Lightning Arrester outlet inspection:

a. Sealing test;

B DC reference voltage U1mA test;

C. Direct leakage current test at 0.75U1ma;

d. Power frequency reference voltage test

e. Continuous current test

f. Partial discharge test;

Sampling test:

a. Accelerated aging test;

b. 4/10 μ S high current withstand test;

c. 2mS square wave capacity test;
